Conduit Design

1. Any exterior conduit to be painted to match the existing roof and wall colors

2. All work will comply with California Electric Code and California Building Codes

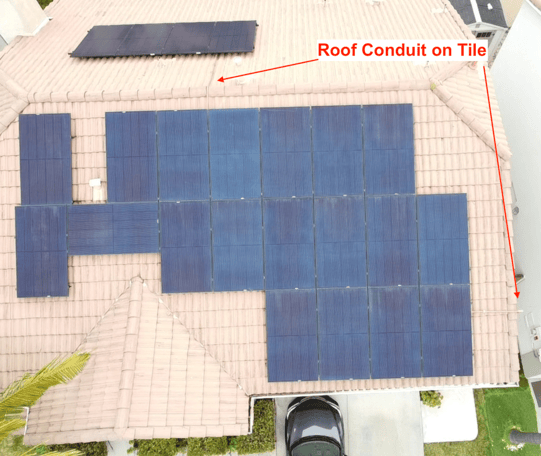

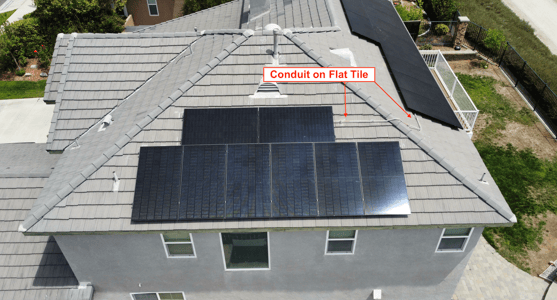

3. No interior conduit runs and will be run on roof and under the eaves

4. Priority will be to ensure we can warranty no roof leaks for 25 years

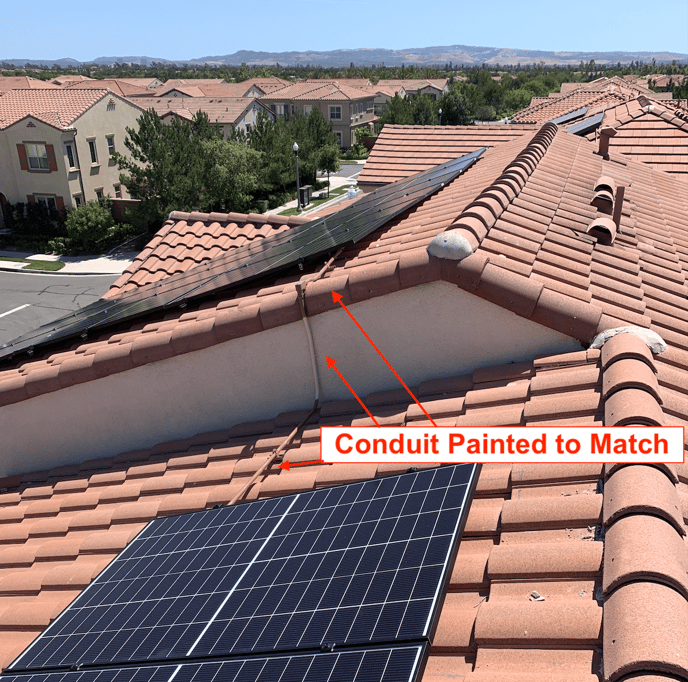

1. Exterior Conduit is painted to match the existing roof and wall colors

2. All work will comply with CA electric and building codes

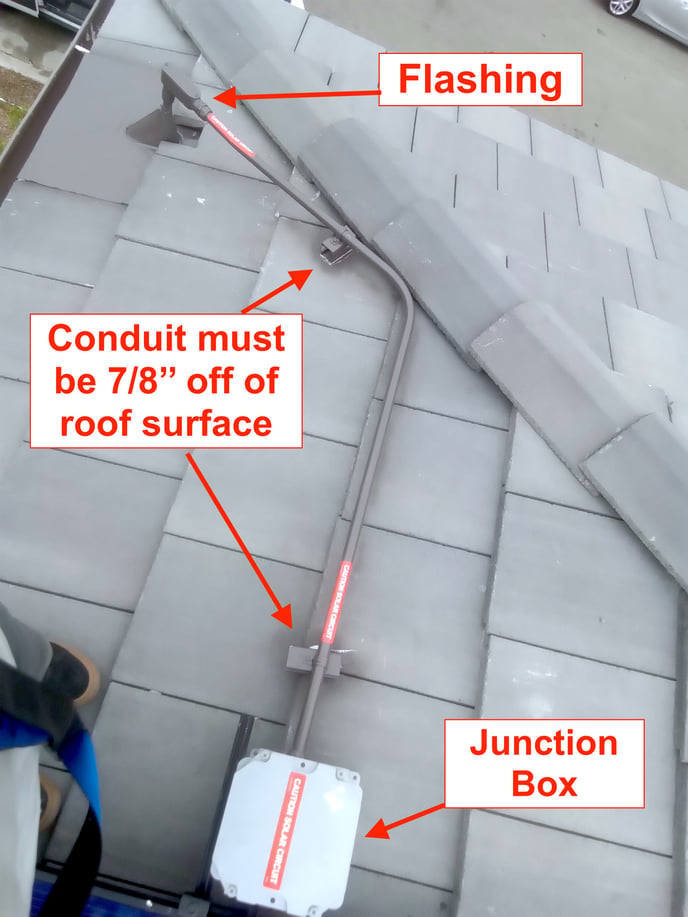

California Electric Code and California Building Codes require the conduit to be a 7/8'' off of the roof surface.

3. No Interior Conduit Runs

We make every effort to ensure that your solar and roof look aesthetically pleasing and minimize the chance of any issues. Due to liability reasons, risk of interior damage and the requirement to have an inspector to access the inside of the home we do not accomodate interior (attic) conduit runs.

4. Priority will be to ensure we can warranty no roof leaks for 25 years

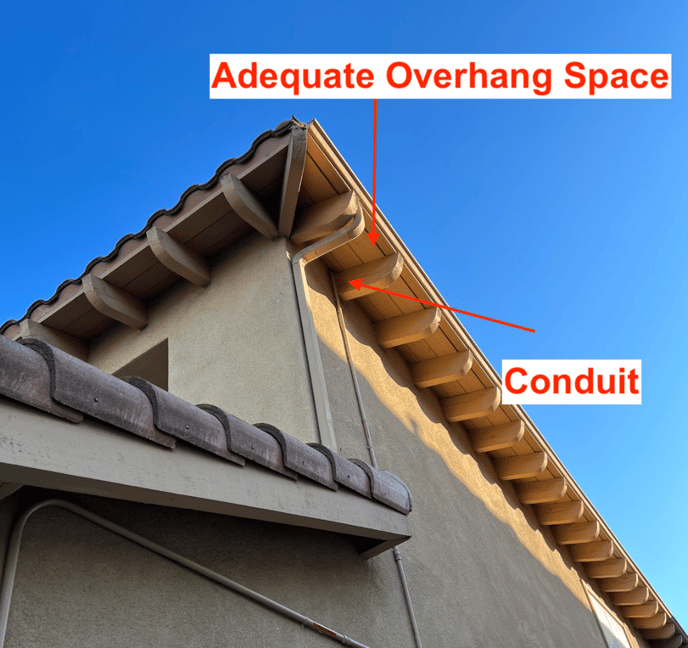

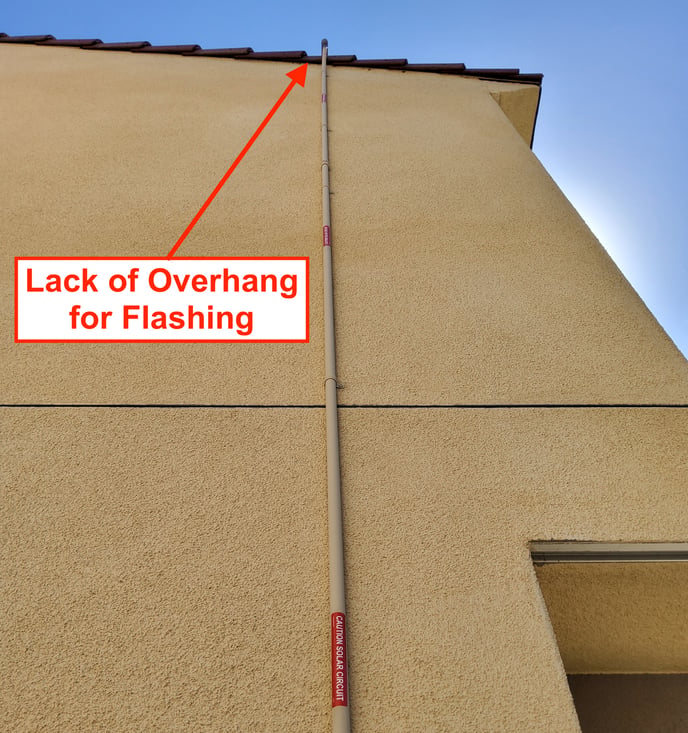

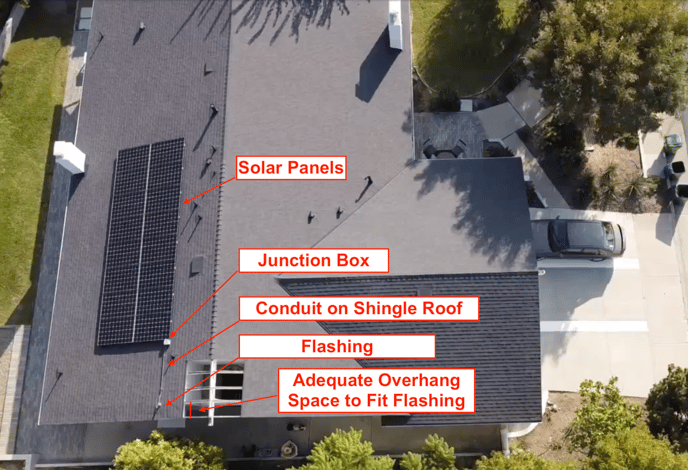

We will ensure that if there is adequate overhang space to properly flash the conduit, we will do so. Otherwise, we will avoid making any holes in the roof line if we feel as though the risk of a roof leak is too high.
